The following diagrams illustrate the components on the front panels of the 5520 Series switches.
Note
In addition to the regular fixed ports, all 5520 Series switches have two QSFP28/QSFP+ Universal Ethernet ports and a Versatile Interface Module (VIM) slot. If you install a VIM, the switch reserves the Universal Ethernet ports for advanced features. If you do not install a VIM, the switch reserves two internal VIM ports for advanced features and you can use the Universal Ethernet ports as regular ports. If you do not require advanced features, you can use the Universal Ethernet ports as regular ports. For more information about using the advanced-feature-bandwidth-reservation boot flag to configure the functionality of these ports, see Advanced Feature Bandwidth Reservation.
When used as regular ports, the port speed is 40 Gbps as a single channel port. Although the maximum supported single channel port speed is 40 Gbps, the ports can be channelized to operate as four 10 or 25 Gbps channels. You can use 100 Gbps LR4 optics in Universal Ethernet ports to have a 100 Gbps connection with a 4x25 Gbps MLT. When the switch detects the optic, it automatically channelizes the port.
For information about supported VIM modules, see ExtremeSwitching 5520 Series Hardware Installation Guide.

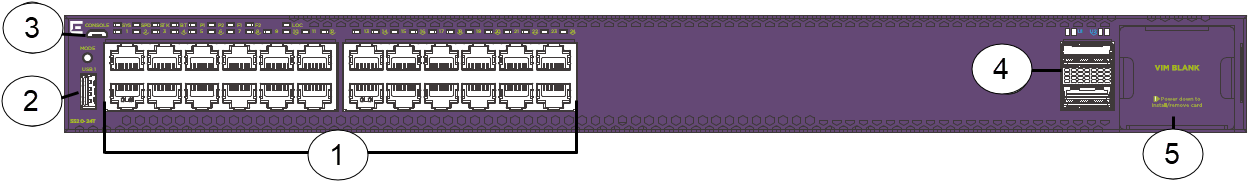

The following diagram illustrates the components of the front panel of the 5520-24T switch. Slot 1 is used for the 24 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
24 10/100/1000BASE-T full-duplex (FDX), half-duplex (HDX), MACsec-capable ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

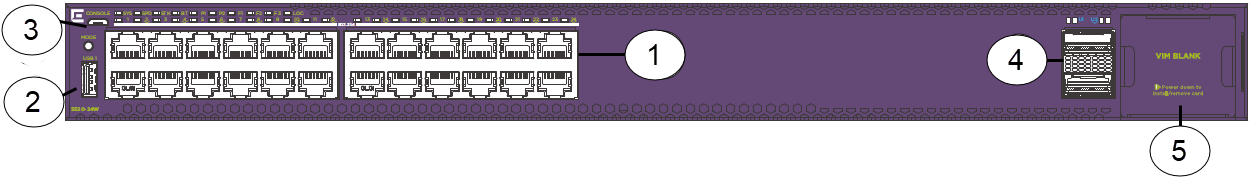

The following diagram illustrates the components of the front panel of the 5520-24W switch. Slot 1 is used for the 24 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
24 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

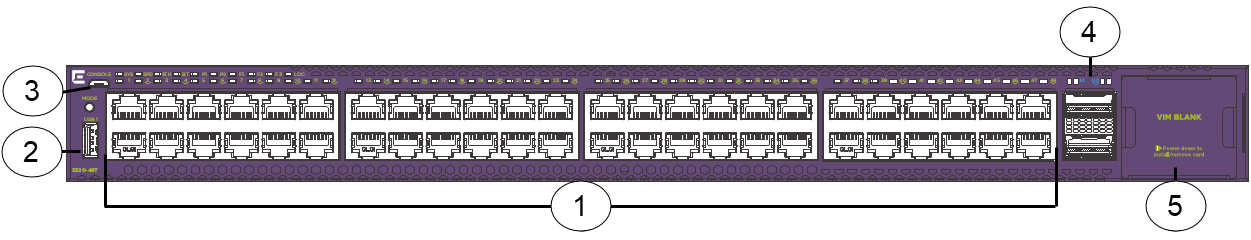

The following diagram illustrates the components of the front panel of the 5520-48T switch. Slot 1 is used for the 48 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
48 10/100/1000BASE-T FDX/HDX MACsec-capable ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

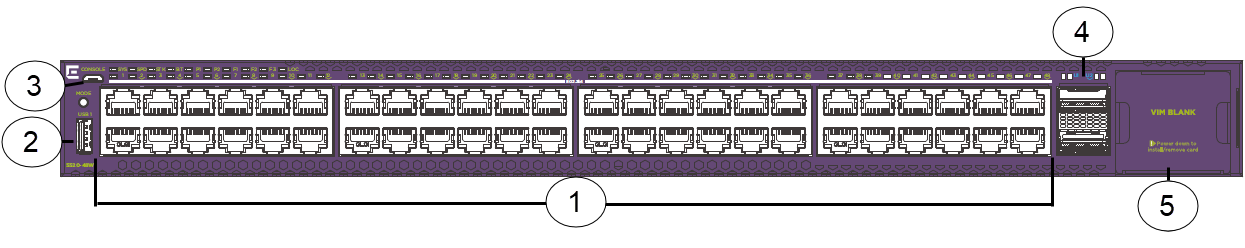

The following diagram illustrates the components of the front panel of the 5520-48W switch. Slot 1 is used for the 48 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
48 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

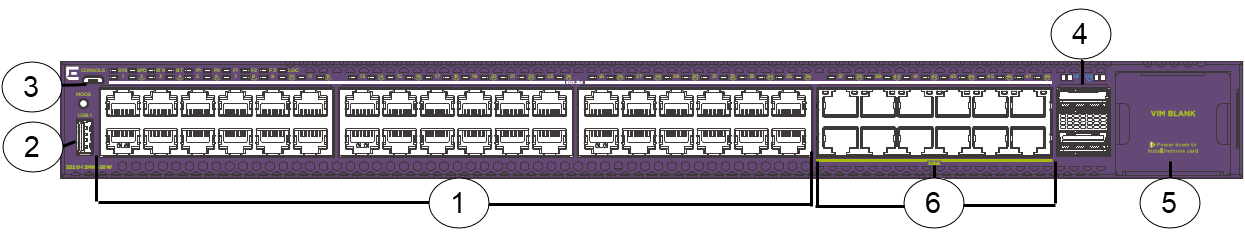

The following diagram illustrates the components of the front panel of the 5520-12MW-36W switch. Slot 1 is used for the 48 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
36 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
12 100 Mbps/1 Gbps/2.5 Gbps/5 Gbps 802.3bt Type 4 PoE MACsec-capable ports
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

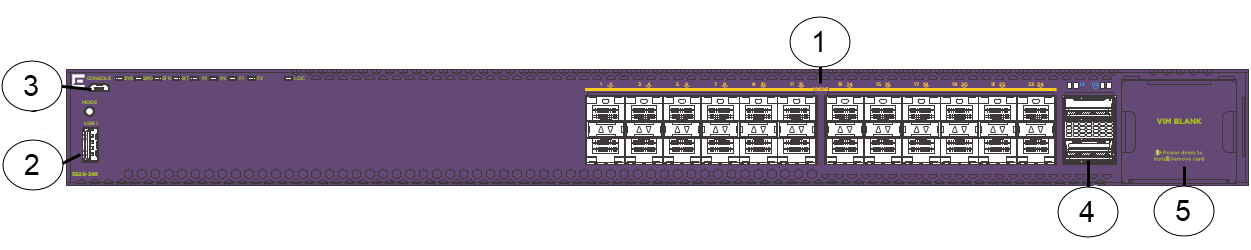

The following diagram illustrates the components of the front panel of the 5520-24X switch. Slot 1 is used for the 24 SFP+ ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
24 100/1000BASE-X/10GBASE-X SFP+ ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

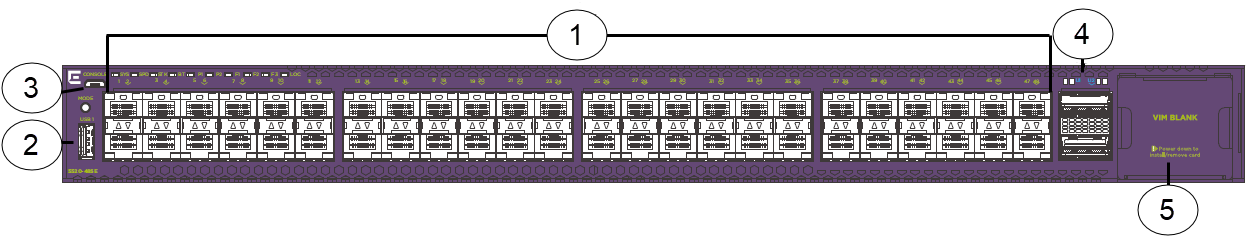

The following diagram illustrates the components of the front panel of the 5520-48SE switch. Slot 1 is used for the 48 SFP ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.
48 100/1000BASE-X MACsec-capable SFP ports
1 USB A port
1 USB micro B management port
2 Universal Ethernet QSFP28 ports
VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.
The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.
